Product Details:
|
| Product Name: | P6mm LED Display | Resolution: | 128*80 |
|---|---|---|---|
| Display Function: | Video Full Color | LED Standard: | SMD3535 |
| Protection Level: | IP45 | Brightness: | More Than 2500cd/sqm |
| Working Temperature: | -20~50℃ | View Angle: | 160 Degee |
| High Light: | P6 Indoor Advertising LED Display Screen,1000Hz Indoor Advertising LED Display Screen,IP45 Programmable LED Curtain |
||

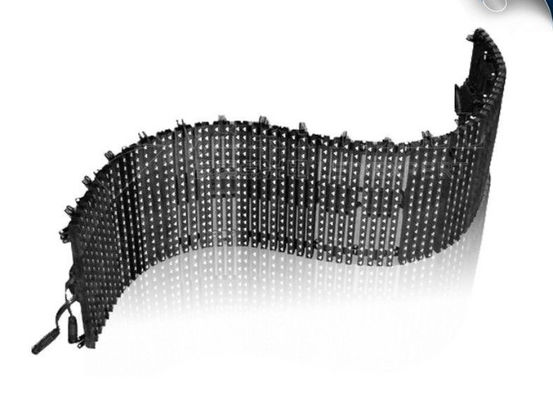

Soft Indoor Full Color P6 mm Flexible LED Curtain Screen For Shopping Mall Advertising
1. Quick Detail:
(1) SMD P6 Aluminum module
(2) High brightness
(3) Light weight and slim design
(4) Big View Angle
(5) IP68 Protect Grade
2. Description:
Dosatronics LED displays are high tech product with our own patent. Especially outdoor LED display for advertising has high brightness, high contrast, high refresh rate…All are popular both in domestic and overseas market. We adopt unbeatable product stability through strict Quality Control System. It is very correct for you to choose our company, our LED display products. All of them has 3 years quality warranty since all component are extremely good. They can bring you large fortune in a very short time.
3. Applications:
Our Full Color SMD Outdoor P6 LED Display is mainly for outdoor usage, such as commercial advertising,
mobile media, night club, entertainment events, business establishments, can install in banks, stock exchange
centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping, malls, railways,
airports, harbors, etc.
4. Specifications:
| Pixel Pitch | 6mm |
| Module Size | 384*240mm |
| Module Resolution(pixels) | 64*40 |
| Cabinet Size | 768mm×480mm |
| Panel Resolution(pixels) | 128×80 |
| Pixel Configuration(RGB) | SMD 3 in 1 |
| Pixel Density(pixels/㎡) | 27777 |
| Brightness(cd/㎡) | 5000 |
| Best Viewing Distance(m) | 6-50 |
| Average Power Consumption(W/㎡) | 300 |
| Waterproof Level | IP65 |
| Drive Method | 1/4scan |
| LED SPEC | 3535 |
| Viewing Angle | 140°(H)/140°(V) |
| Operating Temperature | –40~100 |
| Video Frame Rate(Hz) | ≥ 60HZ |
| Display Refresh Rate(Hz) | ≥ 1000HZ |
| Grey Level(colors) | 16.7million |
| MTBF | ≥50,000 hours |
| Lifespan | ≥100,000Hours |
| Working Voltage | 220V±15% OR 110V±15% |
| Wavelength | R 620-625 G 520-525 B 470-475 |
| Graphics Card | DVI Graphics card |
| Video Signal | RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
| Control System | LINSN |
| Software | LED studio 10.0 |
| Installation | Wall mount, hung and stand structure |
1. High bright 3 in 1 LED SMD lamps with best plastic package suite are not easy to be damaged and ensures the best viewing angle.
2. Constant current chip driving IC MBI514 to reduces the power consumption and prompts the stability,Simple modular design for easy maintanence.
3. Neat appearance,light weight,small size and safe 5V low voltage power supply system all make the module more attractive.
4. Due to its locating holes and 4 in bracket design,it can be used on indoor curved led display and circle led screen.
5. Besides,high definition effect comes with color uniformity and soft color is suitable for indoor close range viewing.
