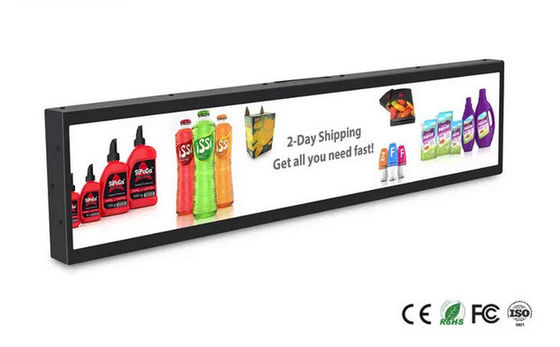

Product Details:
|
| Product Name: | Shelf Digital Signage | Pixel Pitch: | 1.25mm |
|---|---|---|---|
| LED Chip: | COB | Brightness: | 500cd/sqm |
| Application: | Super Market,shop | ||
| High Light: | P1.25mm Shelf Digital Signage,OEM COB Shelf Digital Signage,16bit Digital Signage Display |
||
Product features:
1) Stronger protection: COB LED chips are welded on the PCB board directly, then do encapsulation. It has excellent protection capabilities.
2) Higher reliability and stability: COB technology has simpler process on material using and producing than SMD, so it has higher performance on heat dissipation to prolong life span.
| Item | Parameters |
| Model | P1.25 |
| Pixel Pitch(mm) | 1.25 |
| Physical Density (dot/sqm) | 640,000 |
| LED Configuration | 1RGB |
| Module Size (mmxmm) | 150*56.25 |
| Module Resolution (PXxPX) | 120*45 |
| Scanning mode | 1/45 |
| Brightness(cd/sqm) | 500 |
| Grey Scale | 16bit |
| Refresh Rate(Hz) | 2880Hz |
| Panel Resolution(PXxPX) | 240*45 |
| Panel Max Power Consumption(w) | 15 |
| Panel Average Power Consumption(w) | 5 |
| Panel Size(mmxmm) | 300*56.25 |
| Panel Weight(kg) | 0.35 |
| Panel Thickness(mm) | 20 |
| Panel Material | Profile aluminum |
| Color(M) | 16.7 |
| Input Voltage | AC110V-220V +/-10% |
